Within the framework of its collaboration with

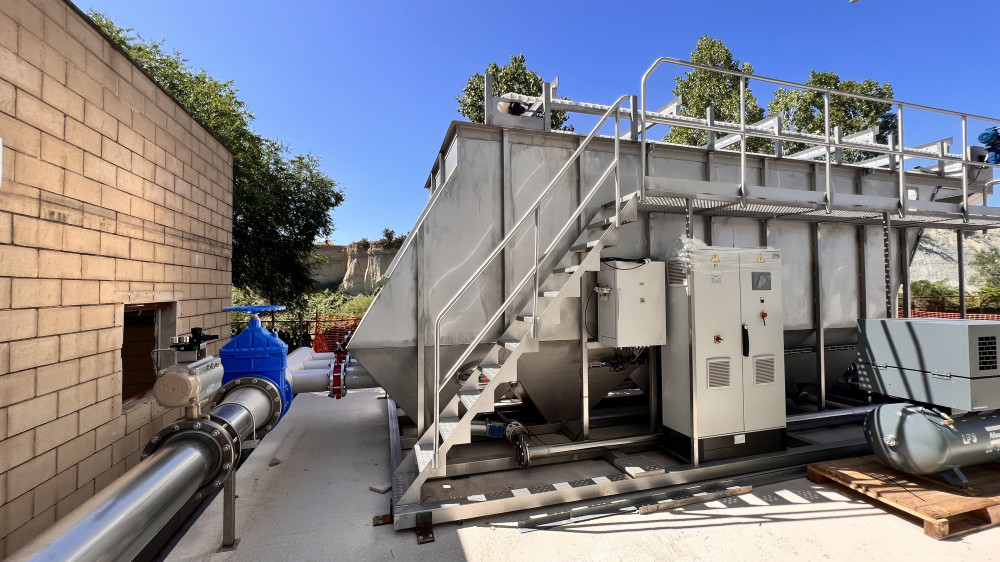

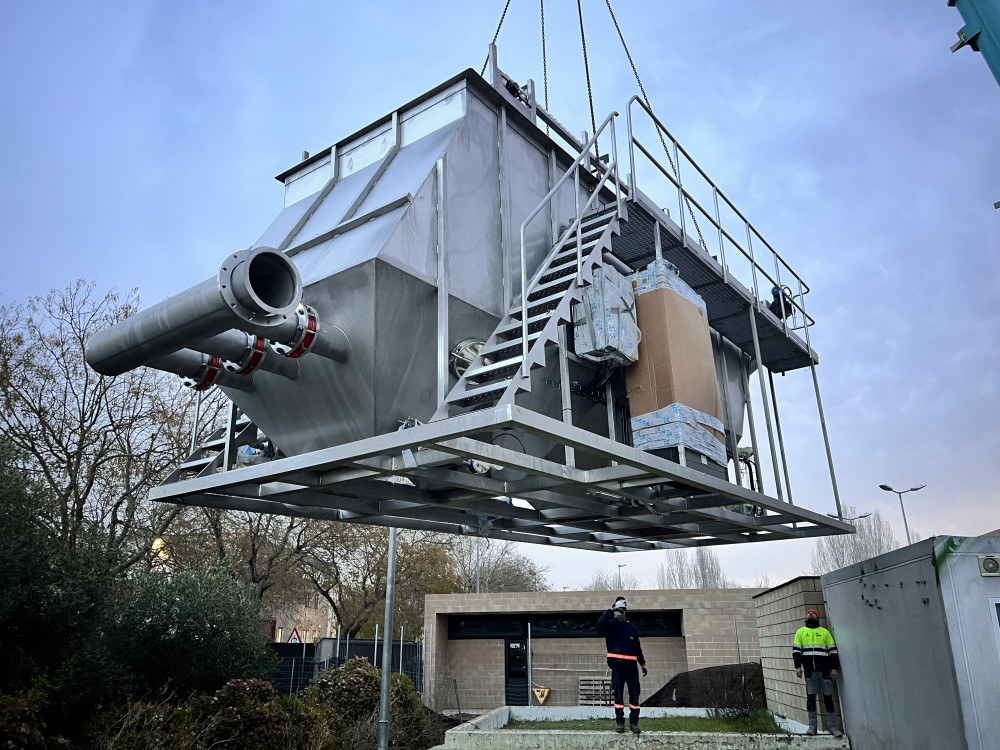

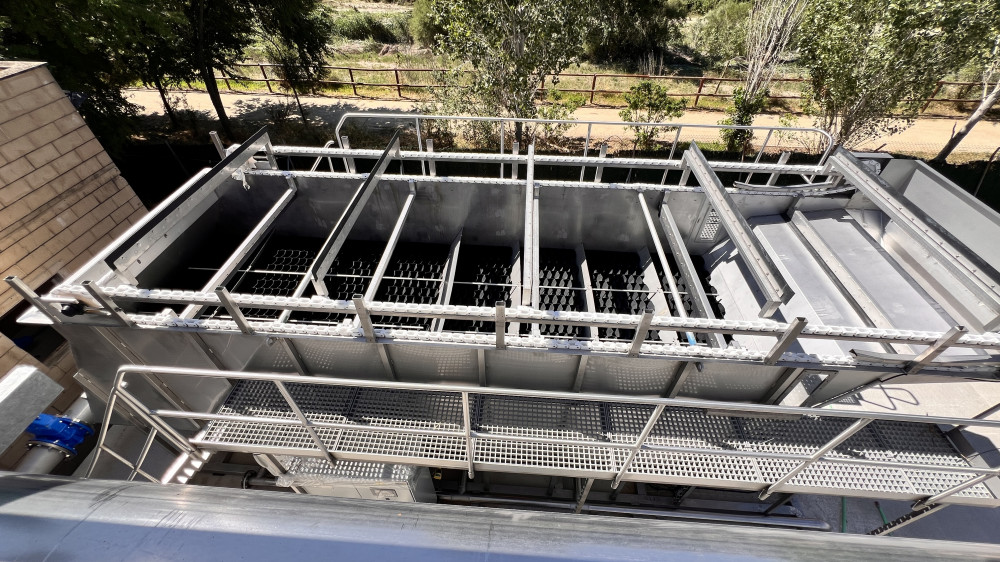

AERIS Tecnologias Ambientals, B2S Renewable Energies has successfully managed the installation of an
L-DAF 500 lamellar float, manufactured by its representative
Suguz (registered trademark Flotadores Urumea), at the
IDR water treatment plant in Igualada.
This technological solution has been designed to implement a tertiary treatment in order to
optimize the elimination of suspended solids and total particulate chromium, in order to comply with the new BREF guidelines.
Main technical characteristics
- Model: Rectangular lamellar float L-DAF 500.
- Application: Tertiary treatment.
- Treatment flow rate: 250 m³/h
- Useful surface: 13 m².

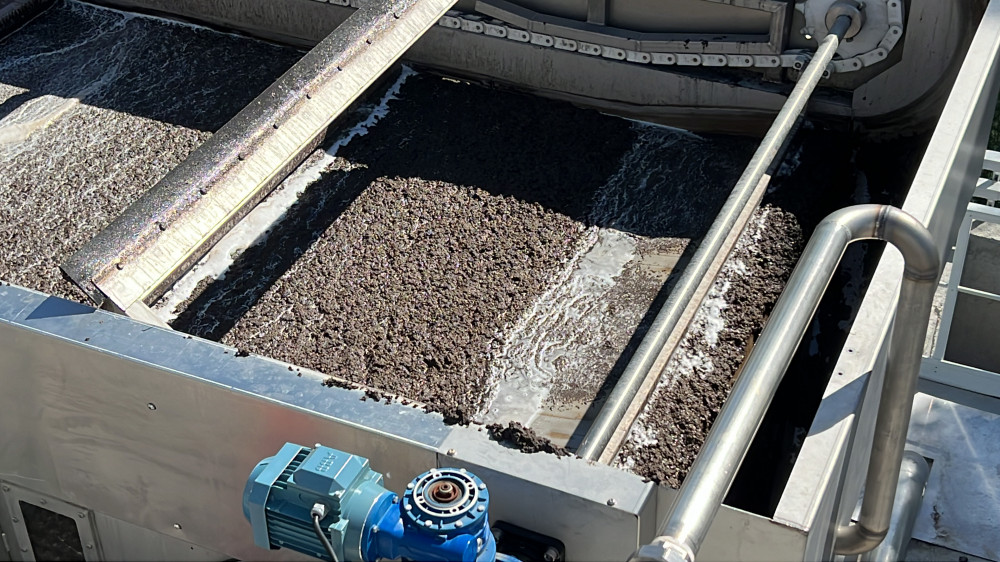

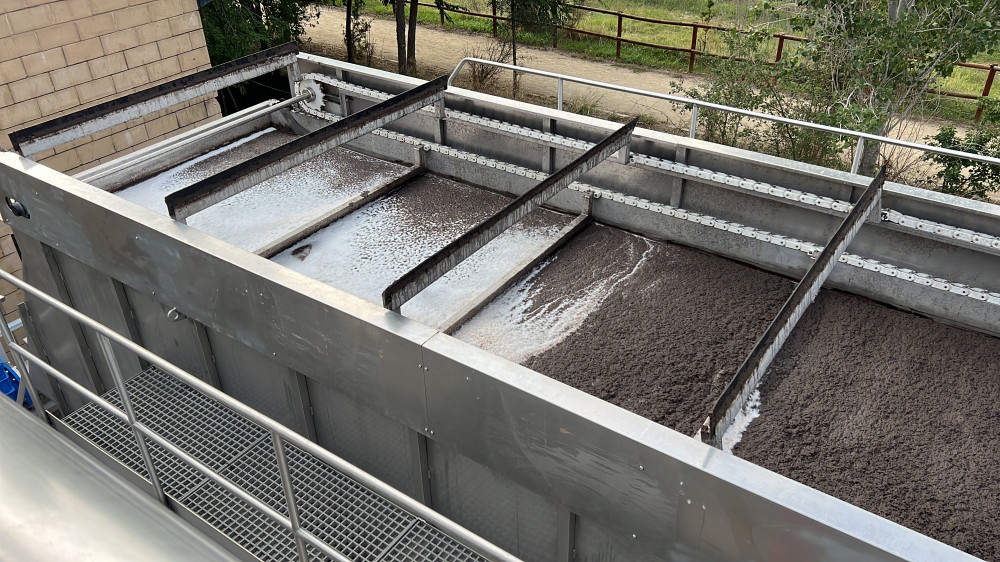

- Sludge collection system: Level regulation with control loop between the piezometric level probe and the outlet flow control valve.

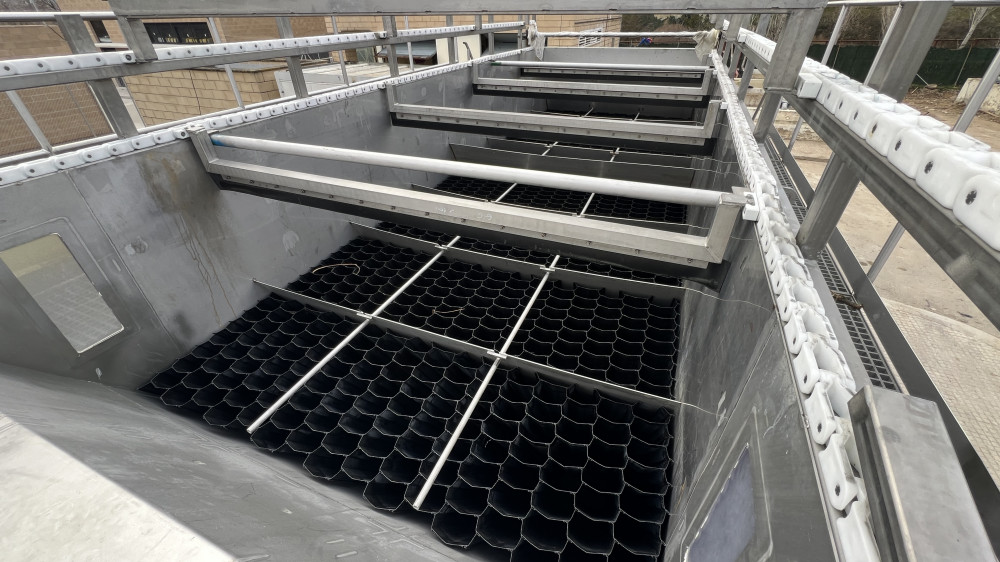

- Lamellas: 1 m high, 60° inclination, with 80 mm separation.
Technological advantages and integrated complementary equipment

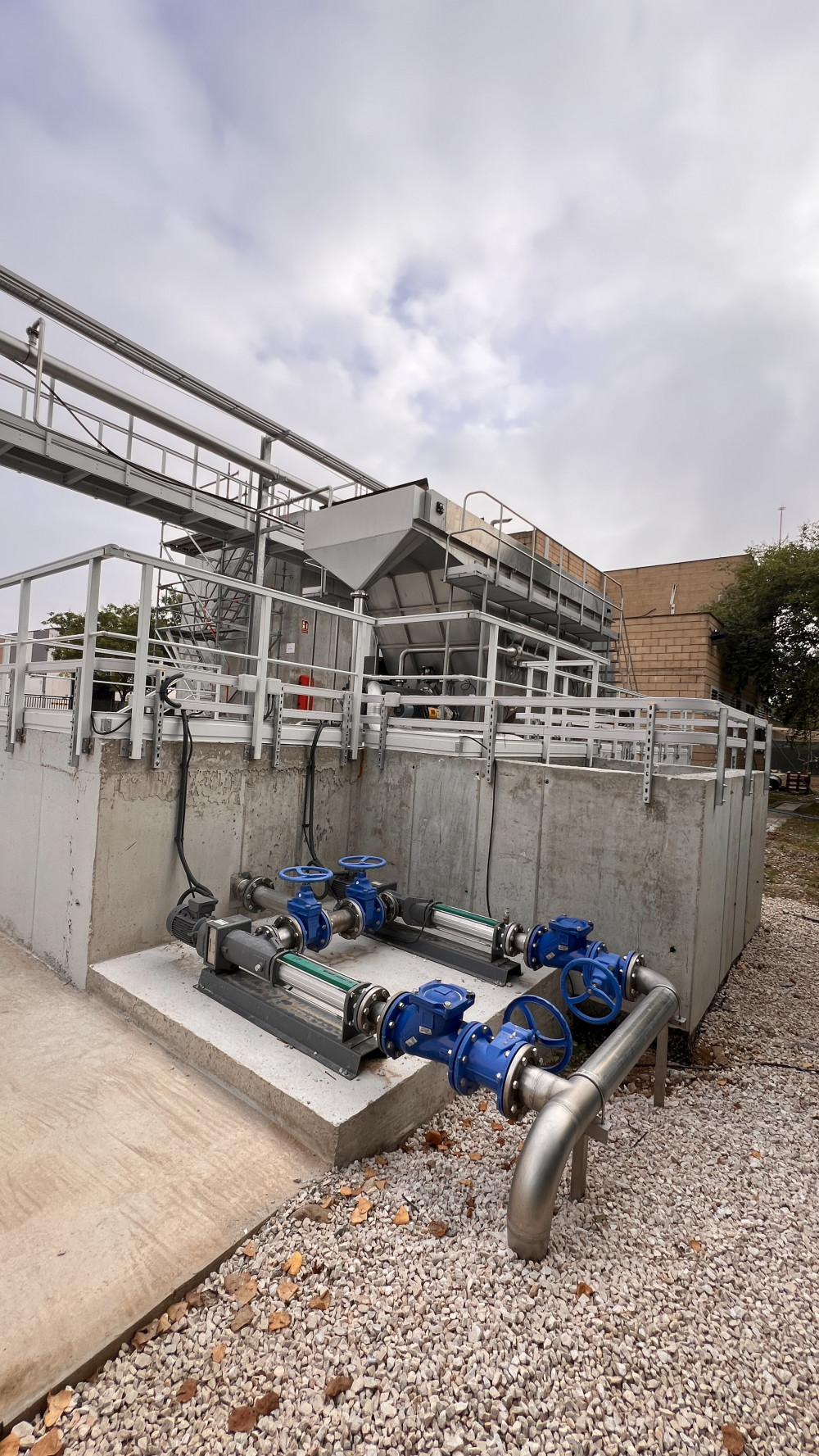

- Hydrodynamic pressurization circuit: treated water recirculation pumps with a flow rate of 60 m3/h at 6 bars.
- Automatic level system: Incorporates piezometric level transmitter with 4-20mA signal, PID and DN200 butterfly valve with actuator and positioner.
- Depressurization system regulated by a control loop with compressed air and equipped with 2 diaphragm valves with actuator and positioner.
- Dry compressed air system: maximum 200 L/minute (40L/minute in operation) at 10 bar provided with a droplet separation system and dryer.
- Intelligent control: PLC S7-1200, Siemens touchscreen, remote access via Ethernet.

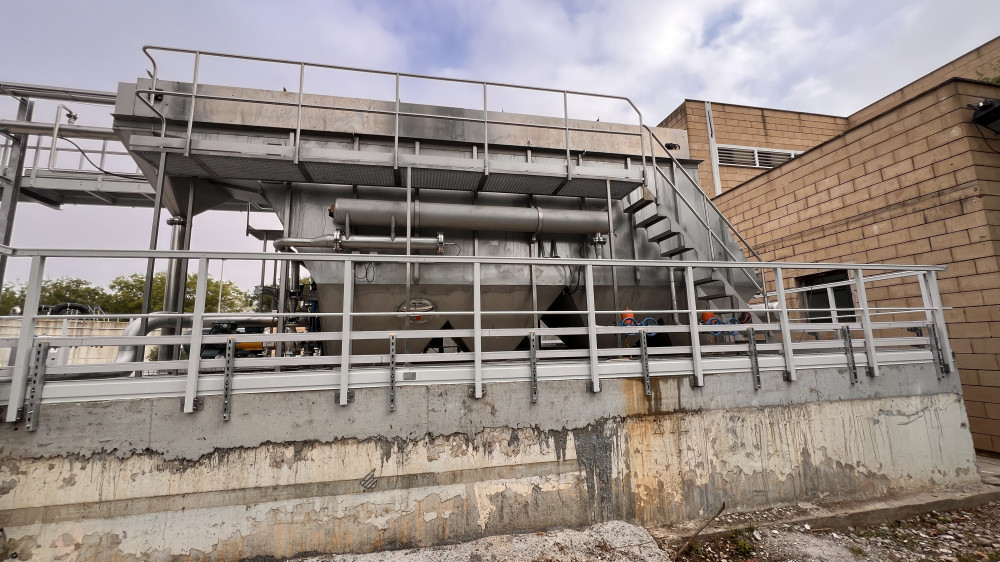

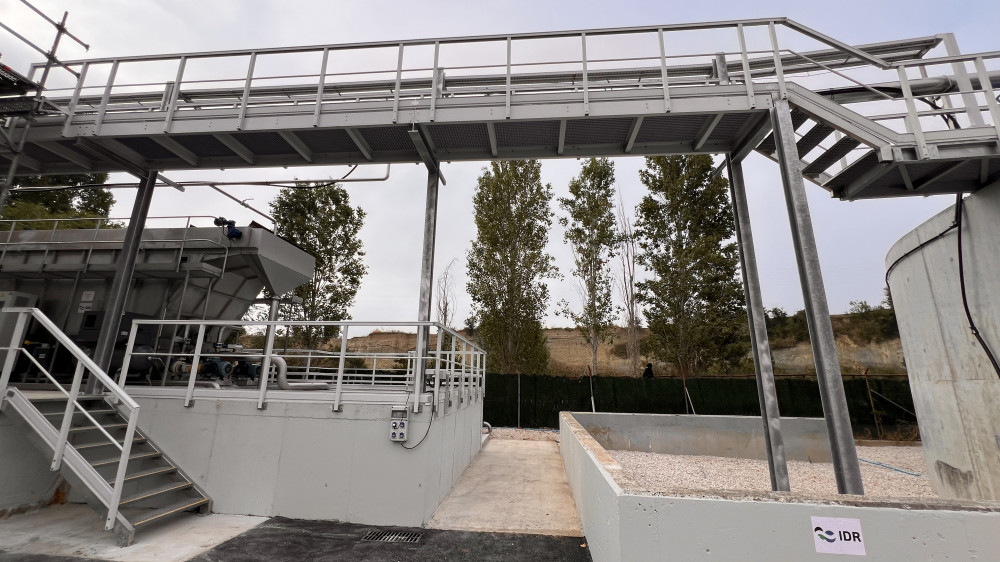

- Structure with maintenance platform and access ladder.
Customer benefits
- Increased removal of suspended solids and total chromium
- Fully automated operation and remote intelligent control.
- Easy access for maintenance, with integrated platform and cleaning systems.
B2S Renewable Energies continues to promote solutions of high technological value for improving the water cycle, together with its representatives,
Suguz (Flotadores Uruema brand) and AERIS, to offer its customers performance, efficiency and sustainability.
